AXAGON UFO 9-in-1 USB-C 10 Gbps HUB USB hub - 8 satamat - USB 3.2 - Musta

AXAGON HMC-UFO USB-C 10 Gbit/s UFO hub expands your laptop, computer or tablet with eight ports and an external box for an M.2 drive. You will connect your laptop to the 9-in-1 docking station via the supplied 65 cm long USB-C cable. In no time, you have an integrated slot for an NVMe or SATA M.2 drive, an SD and microSD card reader, and connectors for connecting a monitor, USB devices, headphones, network cable, and Power Delivery power. Thunderbolt 3/4 compatibility also provides a simple and compact docking station for laptops such as the Apple MacBook Air or Pro.

For the hub to function properly, your laptop's USB-C port must support video output (DisplayPort Alternate Mode or Thunderbolt 3 and above) and Power Delivery.

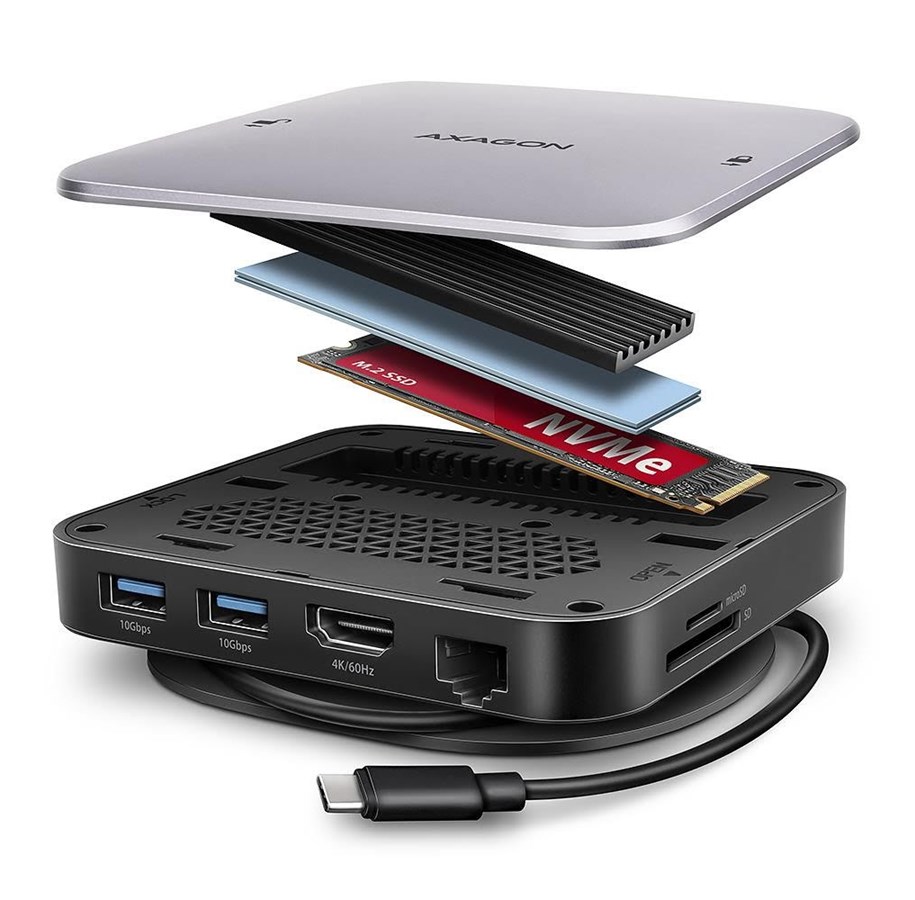

You can connect an NVMe or SATA M.2 SSD via the built-in slot on the top of the hub. The multiport hub thus becomes an external drive. M.2 cards can be single-sided or double-sided up to a size of 22 × 42 mm, 22 × 60 mm and 22 × 80 mm. The external M.2 storage has no SSD capacity limitations, supports TRIM and UASP, and allows reading of S.M.A.R.T. information to monitor disk status.

The top cover of the M.2 slot is made of aluminium, which provides optimal protection and heat dissipation. Screwless mounting makes changing drives quick and easy. A passive heatsink is included to effectively reduce the temperature of M.2 drives. The vents around the cover ensure sufficient air circulation, supporting efficient heat dissipation.

The HDMI output enables the connection of an external monitor, TV or projector with a resolution of up to 4K/60 Hz Ultra HD, 2K/144 Hz Quad HD or 1080p/240 Hz Full HD and the transmission of multi-channel audio. Thanks to HDR support, you can enjoy a significantly expanded range of colours and contrasts.

Two USB-A 10 Gbit/s outputs allow connection of external drives, flash drives, mouse, printer and other USB accessories. The USB ports also charge mobile phones and tablets with a power of up to 7.5 W. The hub is also equipped with a combined USB-C port that can be used for data transfer (USB 5 Gbit/s) or for charging a laptop using a Power Delivery charger. With a suitable PD charger, you can power both the laptop and the hub itself with up to 100 W of power via Power Delivery 3.0 technology.

The memory card reader supports reading and writing of all versions of SD and microSD cards with a capacity of up to 2 TB. The card reader enables simultaneous handling of cards in both slots and direct copying between them.

You can use the 3.5 mm audio output to connect stereo headphones, headset or active speakers. It is equipped with a high-quality DAC converter, which supports sampling up to 384 kHz at 24 bit. You will enjoy superior sound quality that is ideal for lossless formats such as FLAC, WMA, WAV, APE, AAC and ALAC.

The Gigabit network card extends your computer by a fast and stable network connection, adds the missing RJ-45 network connector or another network card.

Thanks to the clever design with four rubber pads on the base, the station stays firmly in place. One of the most practical features is the USB-C cable attachment, which is neatly wrapped around the base. Thanks to this solution, you can easily unwind exactly the length of cable you currently need, which prevents excess cable from taking up unnecessary space on your desk.

Thanks to the Plug and Play and Hot Plug functions, connecting the hub itself is very simple without complicated installation, and peripherals can also be easily connected and disconnected while the computer is running. The hub also supports connection to phones with a USB-C connector, allowing you to connect a flash drive, keyboard, mouse, display, TV or projector.

Input (connection to a computer or mobile device):

• USB 10 Gbit/s (USB 3.2 Gen 2), USB-C male connector
• Compatible with USB 5 Gbit/s, USB4, Thunderbolt 3/4

Input (power supply):

• USB Power Delivery 3.0 – 100 W port, USB-C female connector
• Powering the mobile device from the mains adapter via the USB-C hub
• PD powering must be supported by both the mobile device and the mains charger

USB outputs:

• 2 × USB 10 Gbit/s ports, USB-A female connector
• 1 × USB 5 Gbit/s port for data transfer or Power Delivery charging, USB-C female connector
• Charging of mobile devices (including iPad) with a current of up to 1.5 A/5 V from the hub's USB-A and USB-C ports

Video outputs:

• 1 × HDMI port, HDMI A female connector

Maximum supported resolution:

• 1 monitor – up to 4K/60 Hz Ultra HD, 2K/144 Hz Quad HD, 1080p/240 Hz Full HD

Video features:

• For Apple devices running macOS, the maximum refresh rate is usually limited to 60 Hz
• To achieve maximum resolution and frequency values on video outputs, the dock must be plugged into a USB-C port supporting DisplayPort Alternate Mode (DP Alt Mode) version min. 1.4 or a USB-C port supporting min. Thunderbolt 4. A suitable updated OS and up-to-date graphics drivers are also required
• HDR support (High dynamic range, 10-bit support) – realistic reproduction of light and dark details
• HPD (Hot-Plug-Detect) support
• TMDS (Transition Minimized Differential Signalling) support
• Full support for HDCP 1.4 and 2.2 (High-bandwidth Digital Content Protection)
• Up to 8-channel LPCM audio, compressed audio (AC-3, DTS) and HBR audio format support
• Supports sample rates up to 192 kHz and up to 24-bit audio – depends on the source and target device, i.e. laptop/phone and TV/monitor/AV receiver

The card reader – two slots:

• Slot Micro SD: microSD / microSDHC / microSDXC / TransFlash
• Slot SD: SecureDigital / SDHC / SDXC, MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC, with adapter – miniSD, microSD / microSDHC / microSDXC, MMC Micro
• 2 LUN – The reader is indicated as two disk drives. Direct copying from card to card is supported

RJ-45 output:

• Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection
• Supported transmission rates for the Ethernet interface 10/100/1000 Mbit/s
• Supported IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications
• 10/100/1000 Mbit/s auto-detection

Audio output / input:

• 1 × 3.5 mm 4-pin jack for headset, headphones or active speakers
• 2-channel analog stereo output 384 kHz @ 24 bit for playback
• 192 kHz @ 24 bit analog microphone input for recording

M.2 SSD slot:

• NVMe & SATA M.2 SSD disks
• Designed for M key or B+M key format cards
• NGFF 75-pin M-key slot for M.2 drives
• Support of M.2 drives with a size of 22 × 42 mm, 22 × 60 mm, 22 × 80 mm
• Support of both one-sided and double-sided M.2 SSDs
• Compliant with PCI Express Base Specification Revision 3.1a
• Compliant with NVM Express 1.3 specification
• Compliant with Serial ATA 3.2 specification (SATA/600), bit rates of up to 6 Gbit/s
• Compliant with USB Mass Storage Class specification
• Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later
• Support of TRIM functionality to limit gradual degradation of the SSD performance over time
• Support for booting from an SSD in the hub's M.2 slot

Other features:

• Hot Plug support for connecting devices while running
• Full Plug and Play support
• Standby mode support
• Power supply via USB bus
• Power supply via PD charger (not included)
• The aluminium cover of the M.2 slot helps dissipate heat efficiently
• Blue LED indicates hub connection to the computer
• High quality shielded cable ensures fast communication and minimal interference
• Dimensions 32 × 110 × 100 mm (H × W × D)
• Weight 213 g (incl. cable)
• USB-C cable 65 cm long for connecting the hub to a laptop

Supported operating systems:

• Microsoft Windows 10 / 11, macOS, iPadOS, iOS, Linux, Chrome OS and Android
• Compatibility depends on the operating system and device manufacturer support
• DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated OS and also depends on support from device (notebook, tablet, phone)
• Graphics card drivers may also affect correct operation. Download latest drivers

Package contains:

• USB-C hub with fixed 65 cm long cable
• Passive heatsink
• 2 × thermal conductive pads
• Multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / UA / BG / CN / TR / ARA
• Packed in a cardboard box
