Tuotenumero: 3268033

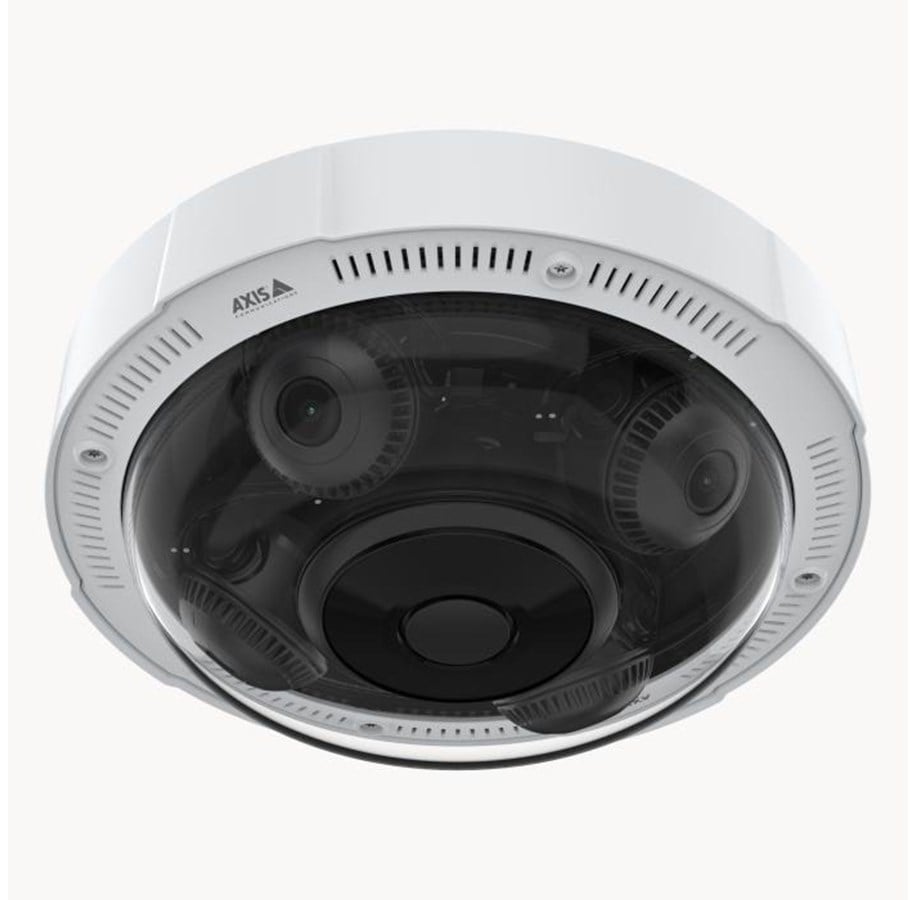

Axis P3737-PLE Panoramic AI-powered 4x5 MP multidirectional Camera
Axis P3737-PLE Kupoli IP-turvakamera Sisätila ja ulkotila 2688 x 1944 pikseliä Katto
2 193,18 €
1 747,55 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tukkurilla, 3-6 arkipäivää toimitukseen
Ideal for wide-area surveillance, this multidirectional camera delivers excellent overviews and detailed coverage. With highly efficient power consumption, it ensures sustainable surveillance with lower operating costs.
Wide area surveillance with high-quality overview - 24/7
AXIS P3737-PLE offers four channels with 5 MP per channel at 20 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness. Plus, Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Furthermore, it’s possible to run metadata and AXIS Object Analytics streams on multiple channels so you can detect and classify people and vehicles, for instance entering a user-defined area. This makes it possible to count selected objects in an area of interest and trigger an alarm if a threshold is exceeded.
Brilliant Design
This compact camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. When mounted on corners, it offers 270° coverage. Featuring a tamper-resistant casing and integrated IP66-/IP67-rated weather shield, it’s protected against rain, snow, and sunlight—ideal for outdoor wall mounting. In addition, all four varifocal camera heads can be moved and rotated to provide the optimal field of view. Plus, each head can be controlled individually so you can monitor scenes in four directions. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together where one captures the wide view and the other zooms in on the same target.
Cost-efficient and secure
With four camera heads in one camera, AXIS P3737-PLE ensures fast, accurate, and cost-effective installation. That’s because there’s only one camera to install, one cable to draw, one IP address, and one video management software (VMS) license. Plus, it offers market-leading energy consumption compared to multiple single-sensor cameras—even with IR enabled. This ensures sustainable surveillance with lower operating costs. Thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine-tuning. Furthermore, Axis Zipstream significantly lowers bandwidth and storage requirements. And Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
Deep learning analytics
Built on ARTPEC-8, this high-performance camera features a deep learning processing unit (DLPU) eliminating the need for expensive servers and allowing for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before—on the edge. This helps ensure fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it can detect and classify people and vehicles. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.
Wide area surveillance with high-quality overview - 24/7
AXIS P3737-PLE offers four channels with 5 MP per channel at 20 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness. Plus, Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Furthermore, it’s possible to run metadata and AXIS Object Analytics streams on multiple channels so you can detect and classify people and vehicles, for instance entering a user-defined area. This makes it possible to count selected objects in an area of interest and trigger an alarm if a threshold is exceeded.
Brilliant Design
This compact camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. When mounted on corners, it offers 270° coverage. Featuring a tamper-resistant casing and integrated IP66-/IP67-rated weather shield, it’s protected against rain, snow, and sunlight—ideal for outdoor wall mounting. In addition, all four varifocal camera heads can be moved and rotated to provide the optimal field of view. Plus, each head can be controlled individually so you can monitor scenes in four directions. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together where one captures the wide view and the other zooms in on the same target.
Cost-efficient and secure
With four camera heads in one camera, AXIS P3737-PLE ensures fast, accurate, and cost-effective installation. That’s because there’s only one camera to install, one cable to draw, one IP address, and one video management software (VMS) license. Plus, it offers market-leading energy consumption compared to multiple single-sensor cameras—even with IR enabled. This ensures sustainable surveillance with lower operating costs. Thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine-tuning. Furthermore, Axis Zipstream significantly lowers bandwidth and storage requirements. And Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
Deep learning analytics
Built on ARTPEC-8, this high-performance camera features a deep learning processing unit (DLPU) eliminating the need for expensive servers and allowing for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before—on the edge. This helps ensure fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it can detect and classify people and vehicles. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.
Valmistaja
Tuotenumero
3268033
Malli
02634-001
Ean
7331021080638
Valmistajan kotisivuille
Tuotekuvaus
AXIS P37 Series P3737-PLE - verkkopanoraamakamera - kupu - TAA-yhteensopiva
Laitteen tyyppi
Verkkopanoraamakamera - monianturi - kupu - ulkokäyttö - sabotointia kestävä / säänkestävä
Audio
Kyllä: kaksisuuntainen ääni valinnaisen ääni- ja I/O-liitännän kautta, kaiuttimen pariliitos
Ulkomitat (PxSxK)
25.5 cm x 25.5 cm x 9.2 cm
Paino
2 kg
Väri
Valkoinen, NCS S 1002-B
Liitäntäteknologia
Langallinen
Kamera
Väri - Päivä&Yö
Optinen zoomaus
2.5 x
Enimmäistarkkuus
2592 x 1944
Kuvataajuus (maks.)
30 kuvaa sekunnissa
Liikkeentunnistus
Kyllä
Optisen anturin tyyppi
PS RGB CMOS - 4 x 1/2.7" - 4 x 5 MP
Vähimmäisvalaistus
0.19 luksi - väri - F1.9 - 50 IRE
0 luksi - B&W (mustavalkoinen) - F1.9 - 50 IRE
0 luksi - IR
0 luksi - B&W (mustavalkoinen) - F1.9 - 50 IRE
0 luksi - IR
Terävyysalueen säätö
Säädettävä tarkennus
Polttoväli
3.2 mm - 8.1 mm
Tarkentaminen
Vähimmäisetäisyys 0.5 m)
Objektiivin himmennin
F/1.9-3.2 - kiinteä himmennin
Panorointialue (astetta)
-90 - +90
Kallistusalue (astetta)
25 to 95
Liitännät
Ethernet 10Base-T/100Base-TX/1000Base-T
Jännite
PoE Plus Class 4
Ominaisuudet
Infrapuna-korjatut objektiivit, etäzoomaus, etätarkennus, infrared-cut filter, syväoppimisen prosessointiyksikkö (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), suurin sallittu bittinopeus, matalan viiveen tila, videon suoratoiston ilmaisin, Forensic WDR, 2D Noise Reduction Technology, 3D Noise Reduction Technology, päivä-/yökynnys, sävykartoitus, tynnyrivääristymän korjaus, peittoteksti, kuvan päällys, dynaaminen teksti, Yksityisyysnaamio-toiminto, monikulmainen yksityisyysmaski, Lightfinder-teknologia, OptimizedIR, ONVIF (Profile G) -tuki, ONVIF (profiili M) -tuki, ONVIF (Profile S) -tuki, ONVIF (Profile T) -tuki, Pixel Counter Support, scene metadata, allekirjoitettu laiteohjelmisto, raa'an voiman viiveen suojaus, yhteenvetotodennus, salasanan suojaus, Axis Edge Vault, akselilaitteen tunnus, turvallinen avainsäilö, signeerattu video, turvallinen uudelleenkäynnistys, IP-osoitteen suodatus
TAA-yhteensopivuus
Kyllä
Ympäristötiedot (käytettäessä)
-30 °C - 50 °C; 10 - 100% RH (condensing) suhteellinen kosteus
Yleistä
Laitteen tyyppi
Verkkopanoraamakamera
Äänituki
Kyllä: kaksisuuntainen ääni valinnaisen ääni- ja I/O-liitännän kautta, kaiuttimen pariliitos
Koko tai muoto
Kupu
Liitäntäteknologia
Langallinen
Leveys
25.5 cm
Syvyys
25.5 cm
Korkeus
9.2 cm
Paino
2 kg
Lokalisointi
Argentiina, Australia, Brasilia, Kiina, Eurooppa, Japani, Korea, Yhdistynyt kuningaskunta, Yhdysvallat
Kamera
Tyyppi
Väri - Päivä&Yö - monianturi - ulkokäyttö - sabotointia kestävä / säänkestävä
Digital Video -tallennusmuoto
H.264B, H.264M, H.264H, H.265, MJPEG, MPEG-4 Part 10, AVC, MPEG-H Part 2, HEVC
Korkein digitaalinen videotarkkuus
2592 x 1944
Liikkeentunnistus
Kyllä
Valotusalue
1/5 s - 1/50000 s
Vähimmäisvalaistus
0.19 luksi - väri - F1.9 - 50 IRE
0 luksi - B&W (mustavalkoinen) - F1.9 - 50 IRE
0 luksi - IR
0 luksi - B&W (mustavalkoinen) - F1.9 - 50 IRE
0 luksi - IR
Infrapuna LED-valot
Kyllä
Infrapunaetäisyys
15 m
Videon sieppaus
2592 x 1944 @ 20 kuvaa/sek
2560 x 1440 @ 25/30 fps
2560 x 1440 @ 25/30 fps
Käyttömuisti (RAM)
4 Gt
Flash-muisti
8 Gt
Ominaisuudet
Infrapuna-korjatut objektiivit, etäzoomaus, etätarkennus, infrared-cut filter, syväoppimisen prosessointiyksikkö (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), suurin sallittu bittinopeus, matalan viiveen tila, videon suoratoiston ilmaisin, Forensic WDR, 2D Noise Reduction Technology, 3D Noise Reduction Technology, päivä-/yökynnys, sävykartoitus, tynnyrivääristymän korjaus, peittoteksti, kuvan päällys, dynaaminen teksti, Yksityisyysnaamio-toiminto, monikulmainen yksityisyysmaski, Lightfinder-teknologia, OptimizedIR, ONVIF (Profile G) -tuki, ONVIF (profiili M) -tuki, ONVIF (Profile S) -tuki, ONVIF (Profile T) -tuki, Pixel Counter Support, scene metadata, allekirjoitettu laiteohjelmisto, raa'an voiman viiveen suojaus, yhteenvetotodennus, salasanan suojaus, Axis Edge Vault, akselilaitteen tunnus, turvallinen avainsäilö, signeerattu video, turvallinen uudelleenkäynnistys, IP-osoitteen suodatus
Kuva-anturi
Tyyppi
4 x 5 MP PS RGB CMOS 4 x 1/2.7"
Objektiivin rakenne
Tyyppi
Säädettävä tarkennus
Optinen zoomaus
2.5 x
Polttoväli
3.2 mm - 8.1 mm
Objektiivin himmennin
F/1.9-3.2 kiinteä himmennin
Minimitarkennusetäisyys
0.5 m
Vaakatasoinen näkökenttä (asteissa)
37 - 99
Pystytasoinen näkökenttä (asteissa)
28 - 70
Diagonaalinen näkökenttä (aste)
47 - 134
Panorointi
Toiminta-alue (aste)
-90 - +90
Kallistus
Toiminta-alue (aste)
25 to 95
Liitännät
Verkkoliitäntä
Ethernet 10Base-T/100Base-TX/1000Base-T
Verkkoprotokollat
IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf
Laajennus / Kytkeytyvyys
Porttia
LAN - RJ-45
Tuetut muistikortit
microSD -kortti, microSDHC -kortti, microSDXC Card
Salausalgoritmi
TLS 1.2, TLS 1.3
Muuta
Sisältyvät lisävarusteet
Liitinsuoja, cable gaskets
TAA-yhteensopivuus
Kyllä
Yhteensopivuusstandardit
IEEE 802.1x, IEEE 802.1ar, UL, cUL, UKCA, KC, EAC, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1 Third Edition, IEC/EN 62471, IS 13252, AS/NZS 62368.1:2022, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 method B, MIL-STD-810H, NEMA 250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), VDMA 24364, NIST SP500-267, ETSI EN 303 645, FIPS 140, IEEE 802.3at, PVC-free, ei sisällä BFR:ää, CFR free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907
Väri
Valkoinen, NCS S 1002-B
Virransyöttö
Virtavaatimukset
PoE Plus Class 4
Virtalähde
13.25 watti(a)
Ohjelmisto / Järjestelmävaatimukset
Mukana tulevat ohjelmistot
AXIS Object Analytics, AXIS Video Motion Detection
Ympäristötiedot
Vähimmäiskäyttölämpötila
-30 °C
Enimmäiskäyttölämpötila
50 °C
Suhteellinen kosteus (käytettäessä)
10 - 100% RH (condensing)
Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
