Tuotenumero: 2514310

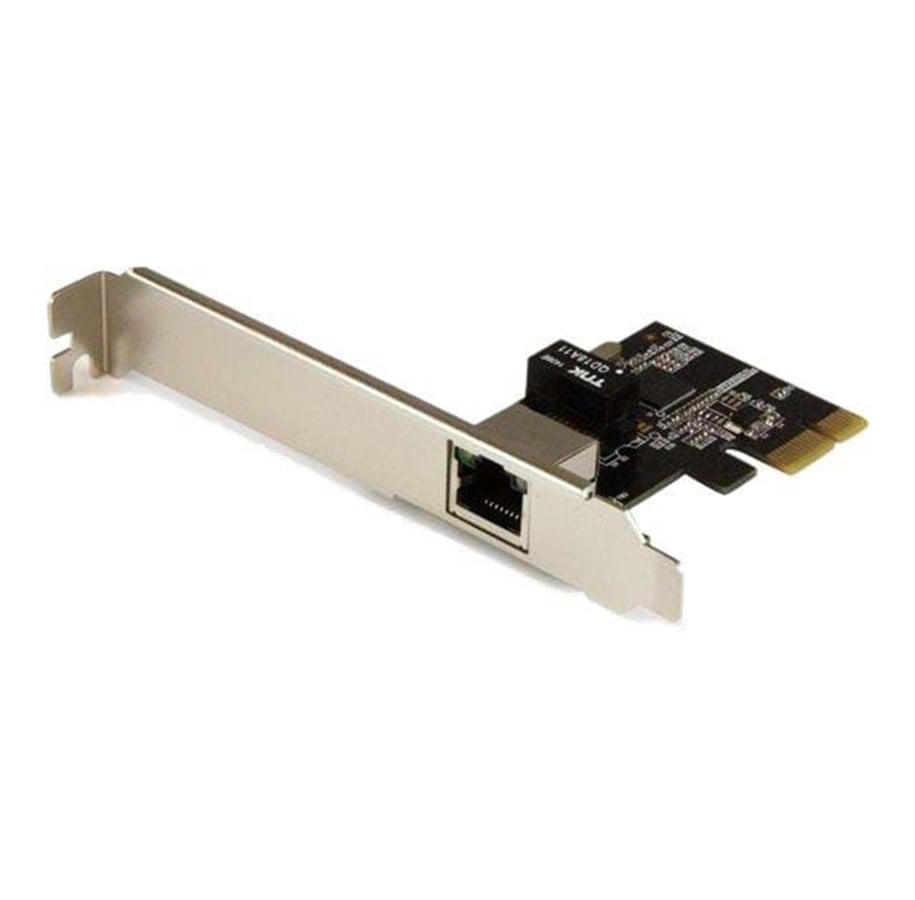

StarTech.com 1-portin Gigabit Ethernet-verkkokortti
PCI Express, Intel I210 NIC, Verkkoadapteri, PCIe matala profiili, GigE, 1000Base-T, musta
43,25 €
34,46 € Ilman arvonlisäveroa
Edullisin toimitus (yksityisasiakkaat) 6,99 €
Tukkurilla, 4-7 arkipäivää toimitukseen
Add Gigabit Ethernet to a client, server or workstation through a PCI Express slot. Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot, to help deliver a high-performance and cost-effective network solution.
This Gigabit Ethernet network card utilizes the Intel I210-AT chipset, designed to deliver the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the network card provides an effective upgrade or replacement network port with maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking. It's a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On LAN and Auto MDIX.
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low profile/half-height installation bracket that you can use as needed.
This Gigabit Ethernet network card utilizes the Intel I210-AT chipset, designed to deliver the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the network card provides an effective upgrade or replacement network port with maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking. It's a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On LAN and Auto MDIX.
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low profile/half-height installation bracket that you can use as needed.
Valmistaja
Tuotenumero
2514310
Malli
ST1000SPEXI
Ean
0065030861038
Valmistajan kotisivuille
Tuotekuvaus
Startech 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC - Single Port PCIe Network Adapter Card with Intel Chipset (ST1000SPEXI) - verkkosovitin - PCI Express x1
Laitteen tyyppi
Verkkosovitin
Koko tai muoto
Vaihtokortti - matala profiili
Liitäntä(väylän) tyyppi
PCI Express x1
Ulkomitat (PxSxK)
6.6 cm x 12 cm x 1.8 cm
Paino
35 g
Kaapelointityyppi
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Tiedonsiirtoprotokolla
1GbE
Tiedonsiirtonopeus
1 Gbit/s
Suoritusteho
Forwarding performance (full duplex): 2 Gbps
Kapasiteetti
Jumbo-kehyskoko: 9000
Suoritin
Intel I210-AT
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x
Väri
Musta
Järjestelmävaatimukset
Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
Yleistä
Laitteen tyyppi
Verkkosovitin
Koko tai muoto
Vaihtokortti - matala profiili
Liitäntä(väylän) tyyppi
PCI Express x1
Verkkoyhteydet
Liitettävyystekniikka
Langallinen
Kaapelointityyppi
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Tiedonsiirtoprotokolla
Gigabit Ethernet
Tiedonsiirtonopeus
1 Gbit/s
Suoritusteho
Forwarding performance (full duplex): 2 Gbps
Kapasiteetti
Jumbo-kehyskoko: 9000
Tilan ilmaisimet
Porttitila, linkki/toiminta
Ominaisuudet
Täysi kaksisuuntaisuuden tuki, automaattinen maa-satelliittiyhteys (auto MDI/MDI-X), Jumbo Frames-tuki
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x
Suoritin / Muisti
Suoritin
Intel I210-AT
Laajennus / Kytkeytyvyys
Liitännät
1 x verkko - RJ-45
Muuta
Sisältyvät lisävarusteet
Matalan profiilin pidike
Yhteensopivuusstandardit
FCC, RoHS
Väri
Musta
Virransyöttö
Virran kulutus (toiminnassa)
0.8 watti(a)
Ohjelmisto / Järjestelmävaatimukset
Vaadittu käyttöjärjestelmä
Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
Mitat & Paino
Leveys
6.6 cm
Syvyys
12 cm
Korkeus
1.8 cm
Paino
35 g
Ympäristötiedot
Vähimmäiskäyttölämpötila
5 °C
Enimmäiskäyttölämpötila
50 °C
Toimintakosteus
20 - 80%
Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
