Tuotenumero: 2551491

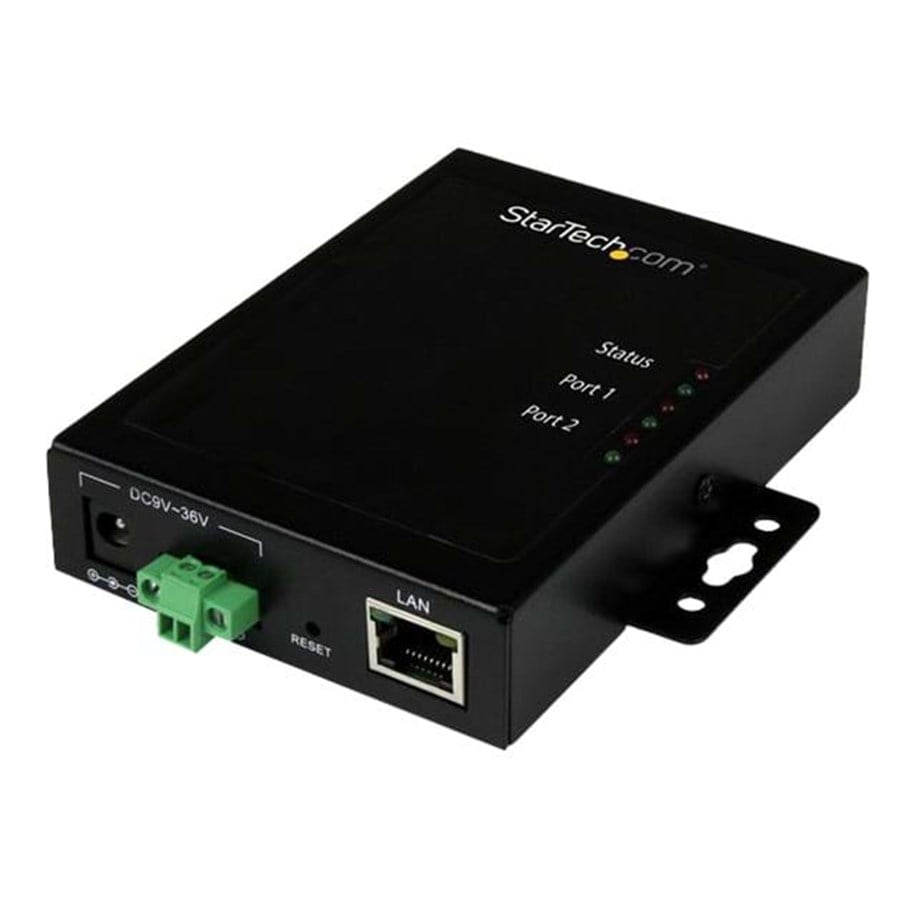

StarTech.com 2-porttinen sarjaportti-IP Ethernet-laiteserveri
RS232, Laitepalvelin, 2 porttia, 100Mb LAN, RS-232, AC 120/230 V / DC 9, 36 V, seinään
308,47 €
245,79 € Ilman arvonlisäveroa
Ilmainen toimitus noutopisteeseen
Tukkurilla, 7-10 arkipäivää toimitukseen
Laturi sisältyy hintaan
Connect, configure and manage two remote RS232 serial devices, over an IP network. This 2-port serial device server is a cost-effective way to remotely connect to and manage two serial devices over your typical IP network. The device server integrates two RS232 ports into a rugged metal housing with an extended operating temperature range, so it's perfect for factory and industrial settings.
If you're looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.
Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.
With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter.
Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.
This highly customizable device server is easy to configure to suit your application. For easy setup, Windows users can use the provided Virtual COM port software, or the versatile Web-based interface.
The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols.
If you're looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.
Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.
With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter.
Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.
This highly customizable device server is easy to configure to suit your application. For easy setup, Windows users can use the provided Virtual COM port software, or the versatile Web-based interface.
The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols.
Valmistaja
Tuotenumero
2551491
Malli
NETRS2322P
Ean
0065030864145
Valmistajan kotisivuille
Tuotekuvaus
Startech 2 Port Serial-to-IP Ethernet Device Server - RS232 - Metal and Mountable - Serial Device Server - RS232 Serial-Over-IP (NETRS2322P) - laitepalvelin
Laitteen tyyppi
Laitepalvelin
Koko tai muoto
Seinään kiinnitettävä
Lokalisointi
Australia, Pohjois-Amerikka, Yhdistynyt kuningaskunta, Eurooppa
Porttien lukumäärä
2
Tiedonsiirtoprotokolla
Ethernet, Fast Ethernet, RS-232
Sisältyvät lisävarusteet
Virtapäätelohko
Vaadittu käyttöjärjestelmä
Apple MacOS, Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019
Virransyöttö
AC 120/230 V / DC 9 - 36 V
Virran redundanssi
Kyllä
Ulkomitat (PxSxK)
8 cm x 11.3 cm x 2.5 cm
Paino
310 g
Yleistä
Laitteen tyyppi
Laitepalvelin
Leveys
8 cm
Syvyys
11.3 cm
Korkeus
2.5 cm
Paino
310 g
Kotelon väri
Musta
Lokalisointi
Australia, Pohjois-Amerikka, Yhdistynyt kuningaskunta, Eurooppa
Verkkoyhteydet
Koko tai muoto
Seinään kiinnitettävä
Porttien lukumäärä
2
Liitettävyystekniikka
Langallinen
Tiedonsiirtonopeus
460.8 kbit/s
Tiedonsiirtoprotokolla
Ethernet, Fast Ethernet, RS-232
Verkko / Siirtoprotokolla
TCP/IP, UDP/IP, ICMP/IP, BOOTP, DHCP
Kaukohallintaprotokolla
Telnet
Tilan ilmaisimet
Tila, LAN, linkki/toiminta
Ominaisuudet
Täysi kaksisuuntaisuuden tuki, automaattinen yhteydenmuodostus, automaattinen maa-satelliittiyhteys (auto MDI/MDI-X), 15 KV Electrostatic Discharge Protection, nollaus-painike, 8 KV Contact Electrostatic Discharge Protection
Yhteensopivuusstandardit
IEEE 802.3, IEEE 802.3u
Laajennus / Kytkeytyvyys
Liitännät
2 x RS-232 - DB-9
1 x 100Base-TX - RJ-45
1 x 100Base-TX - RJ-45
Muuta
Sisältyvät lisävarusteet
Virtapäätelohko
Yhteensopivuusstandardit
FCC, RoHS, WEEE, RCM
Virransyöttö
Virtalähde
Ulkoinen virtasovitin
Virran redundanssi
Kyllä
Vaadittava jännite
AC 120/230 V / DC 9 - 36 V
Ohjelmisto / Järjestelmävaatimukset
Mukana tulevat ohjelmistot
Ajurit ja apuohjelmat, Virtual COM -ohjelmisto (ainoastaan Windorws)
Vaadittu käyttöjärjestelmä
Apple MacOS, Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019
Ympäristötiedot
Vähimmäiskäyttölämpötila
0 °C
Enimmäiskäyttölämpötila
85 °C
Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
