AXAGON 2 × USB-A 5 + 2 × Internal 5 Gbps PCIe Card

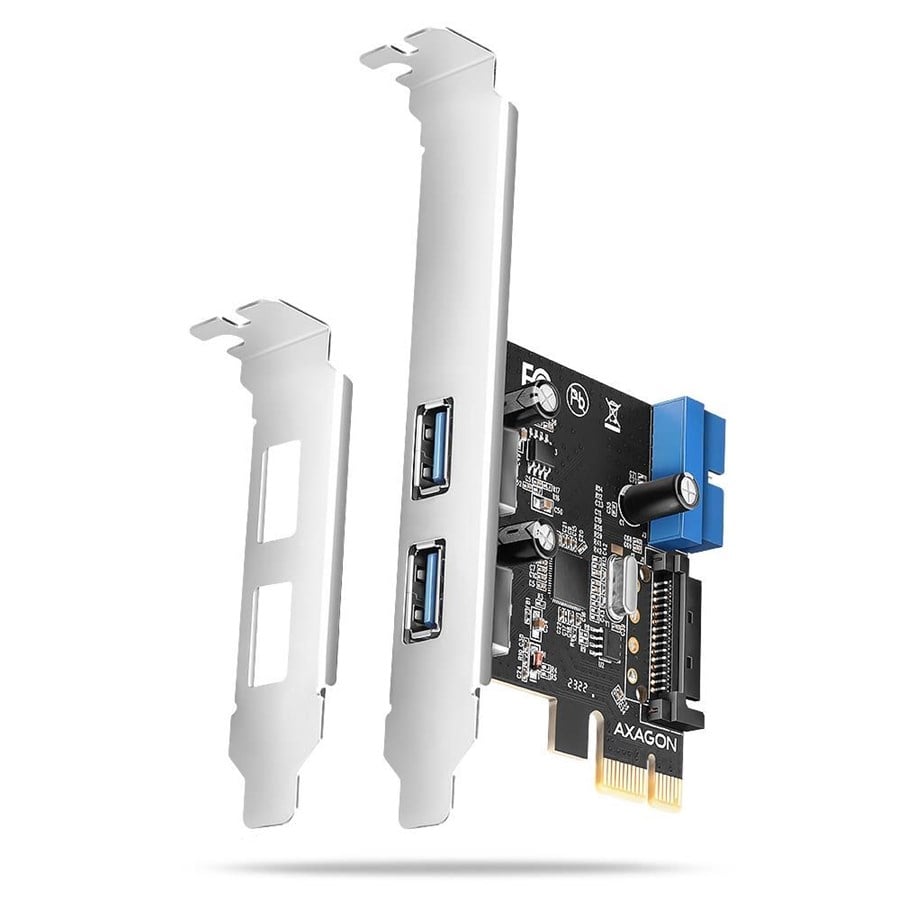

The AXAGON PCEU-232RS PCI-Express card adds four USB 5 Gbit/s ports to your desktop computer. The card is designed for fast data transfers at speeds up to 5 Gbit/s.

Two USB-A ports are taken out to the bracket. You can connect two different USB devices such as printers, keyboards, card readers, flash drives, external HDDs, etc. Another two ports (in the form of an internal USB 5 Gbit/s 19-pin connector) are integrated on the card board. This allows connection of an internal USB reader or connection of the front USB ports of a PC case.

Reliable power supply of the card is provided from the computer power supply via the SATA power connector. The USB controller is equipped with a renowned Renesas chipset with proven seamless compatibility and UASP support.

The package contains a low-profile bracket for mounting the adapter into low-profile cases.

• PCI-Express 2.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.1 / 3.0 / 4.0.
• Number of 1-Lane lines (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.
• Bandwidth of 1-Lane PCI-Express 2.0 bus up to 5 Gbit/s.

• SATA 15-pin male power connector.

• 2x external USB 5 Gbit/s ports with USB-A connectors.
• 19-pin internal USB 5 Gbit/s connector with two ports, used for example to connect an internal USB reader or the front USB ports of a PC case.
• USB interface: USB 5 Gbit/s, prior to USB 3.2 Gen 1 / USB 3.0.
• Compatible with USB 3.2 Gen 2, backward compatible with USB 2.0 and USB 1.1.
• Supports transmission rates 5000 / 480 / 12 / 1.5 Mbit/s.
• When connected to a PCI-Express bus version 1.0, theoretical transmission rate max. 2500 Mbit/s.

• Full Plug and Play support.
• Supports concurrent activity of SuperSpeed USB, USB 2.0 and USB 1.1 devices.
• Compliant with the final official xHCI specification revision 1.0 by USB-IF.
• Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later.
• Fully supports Hot Plug connecting and disconnecting of USB devices while running.
• Internal SATA power connector for powering the controller from the PC power supply.
• Renesas PD720201 chipset is used.

• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (all 32- and 64-bit Windows OS versions supported), Linux with kernel 2.6.31 and above.
• Note: Drivers are only required for Windows XP / Vista / 7. For Linux, Windows 8 / 8.1 / 10 / 11, Server 2012 / 2016 / 2019 / 2022 and later, no external drivers are required as they are included in the operating system.

• PCI-Express card with a standard bracket,
• Low profile bracket,
• Multilingual manual CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK / SLO / SRB / SWE / TR / UA / ALB / BG / BOS / CN / ARA,
• Packed in a cardboard box.
