Ohjainkortit - StarTech.com 2-porttinen PCI Express (PCIe) USB 3.0 -kortti UASP:lla. - PEXUSB3S24
Tuotenumero: 2454113
PEXUSB3S24
PEXUSB3S24
PEXUSB3S24
PEXUSB3S24

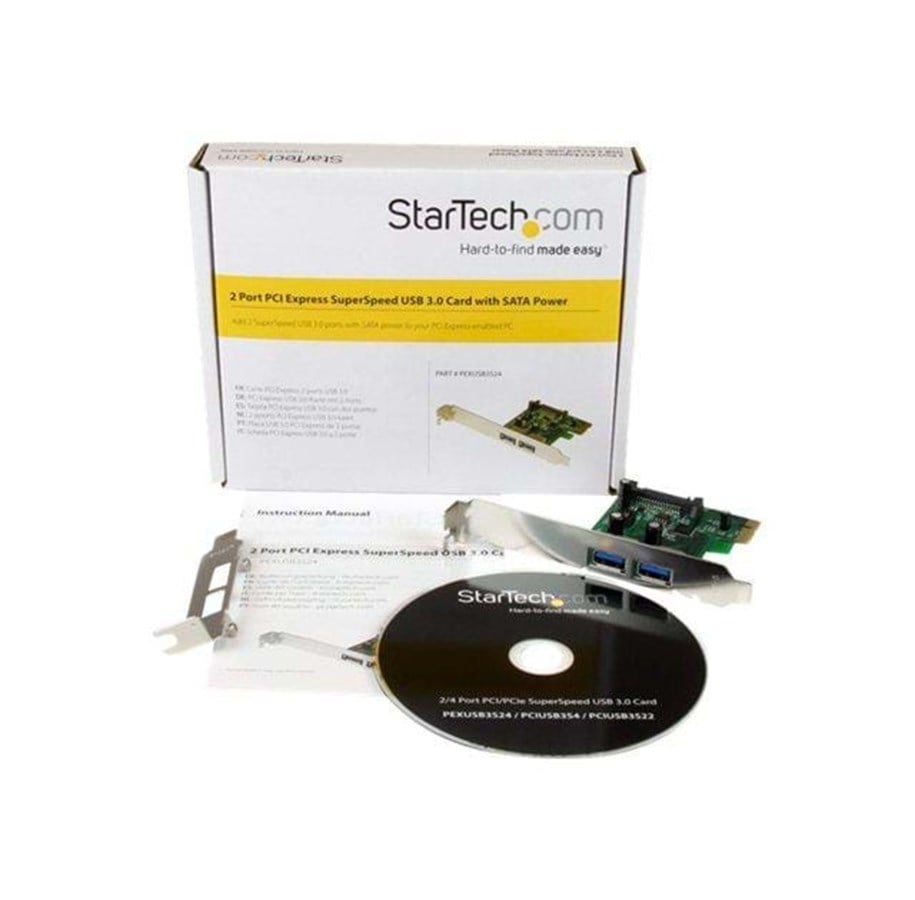

StarTech.com 2-porttinen PCI Express (PCIe) USB 3.0 -kortti UASP:lla.

SATA Power, USB sovitin, PCIe, USB 3.0 x 2

35,70 € 28,79 € Ilman arvonlisäveroa
Edullisin toimitus (yksityisasiakkaat) 5,99 €
Tukkurilla, 4-7 arkipäivää toimitukseen

Add 2 SuperSpeed USB 3.0 ports with SATA power to your PCI Express-enabled PC. The PEXUSB3S24 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0).
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers.
The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
UASP is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

Valmistaja
Tuotenumero
2454113
Malli
PEXUSB3S24
Ean
0065030855587
Valmistajan kotisivuille
Tuotekuvaus
StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA Power - Dual Port USB 3 PCIe Controller (PEXUSB3S24) - USB-sovitin - PCIe - USB 3.0 x 2
Laitteen tyyppi
USB-sovitin
Koko tai muoto
Vaihtokortti
Liitäntä(väylän) tyyppi
PCI Express x1
Portit
USB 3.0 x 2
Ulkomitat (PxSxK)
2.2 cm x 6 cm x 6.5 cm
Paino
56 g
Tiedonsiirtoprotokolla
USB 3.0
Tiedonsiirtonopeus
5 Gbit/s
Yhteensopivuusstandardit
USB 3.0
Järjestelmävaatimukset
Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits)
Suunniteltu malleihin
P/N: CFASTRWU3, ST3300GU3B, ST4300U3C1, ST4300U3C1B, ST7300U3M, ST7300USB3B, ST7300USBME, USB3S2ESATA3

Yleistä

Laitteen tyyppi
USB-sovitin
Koko tai muoto
Vaihtokortti
Liitäntä(väylän) tyyppi
PCI Express x1

Verkkoyhteydet

Portit
USB 3.0 x 2
Liitettävyystekniikka
Langallinen
Tiedonsiirtoprotokolla
SuperSpeed USB 3.0
Tiedonsiirtonopeus
5 Gbit/s
Yhteensopivuusstandardit
USB 3.0

Laajennus / Kytkeytyvyys

Liitännät
2 x USB 3.0 - 9 pin USB Type A (ulkoinen)

Muuta

Sisältyvät lisävarusteet
Matalan profiilin pidike
Yhteensopivuusstandardit
FCC, RoHS

Ohjelmisto / Järjestelmävaatimukset

Mukana tulevat ohjelmistot
Ajurit ja apuohjelmat
Vaadittu käyttöjärjestelmä
Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits)

Mitat & Paino

Leveys
2.2 cm
Syvyys
6 cm
Korkeus
6.5 cm
Paino
56 g

Ympäristötiedot

Vähimmäiskäyttölämpötila
5 °C
Enimmäiskäyttölämpötila
50 °C
Toimintakosteus
20 - 80%

Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
