Ohjainkortit - StarTech.com 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with SATA Teho - PEXUSB3S4V
Tuotenumero: 2386023
PEXUSB3S4V
PEXUSB3S4V
PEXUSB3S4V

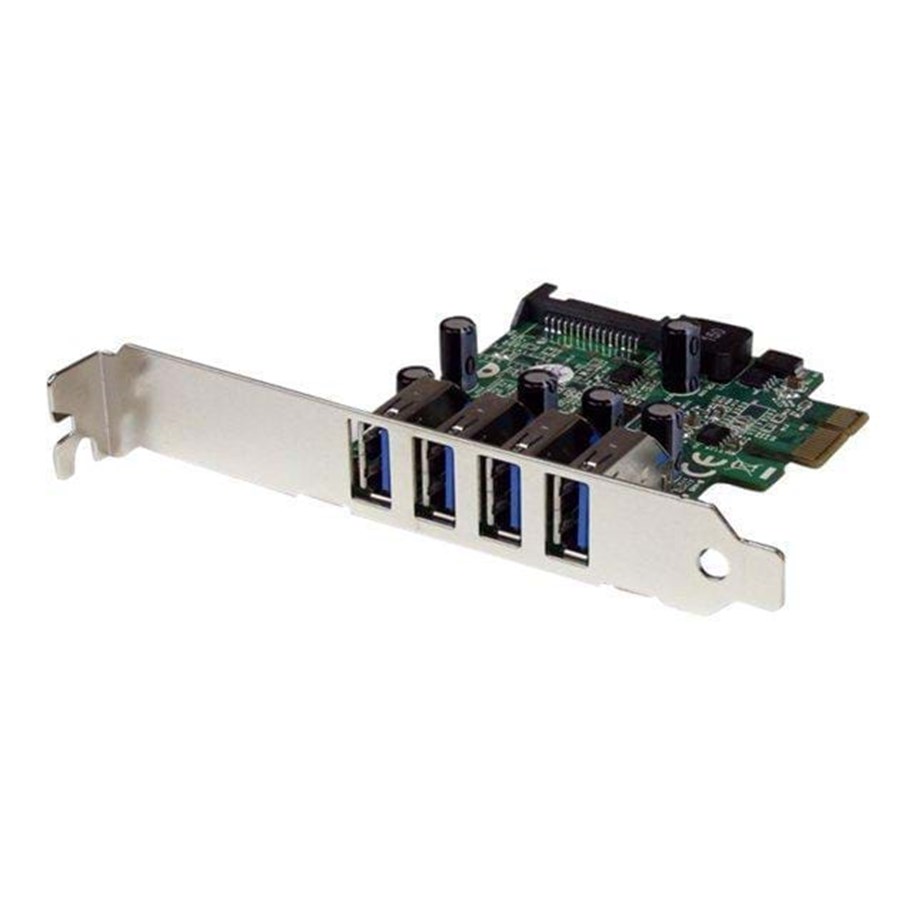

StarTech.com 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with SATA Teho

SATA Power, USB sovitin, PCIe, USB 3.0 x 4 malleihin P/N: USB3S2ESATA3

49,72 € 40,10 € Ilman arvonlisäveroa
Edullisin toimitus (yksityisasiakkaat) 6,99 €
Tukkurilla, 3-6 arkipäivää toimitukseen

Add 4 external USB 3.0 ports to a low profile or standard computer, through PCI Express. The PEXUSB3S4V PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers.
The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.
Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.
UASP is supported in Windows 8, Server 2012 and Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

Valmistaja
Tuotenumero
2386023
Malli
PEXUSB3S4V
Ean
0065030848961
Valmistajan kotisivuille
Tuotekuvaus
StarTech.com 4-Port PCI Express SuperSpeed USB 3.0 Controller Card with UASP - USB 3.0 Expansion Card with SATA Power (PEXUSB3S4V) - USB-sovitin - PCIe - USB 3.0 x 4
Laitteen tyyppi
USB-sovitin
Koko tai muoto
Vaihtokortti
Liitäntä(väylän) tyyppi
PCI Express x1
Portit
USB 3.0 x 4
Ulkomitat (PxSxK)
1.9 cm x 7.5 cm x 6.8 cm
Paino
45 g
Tiedonsiirtoprotokolla
USB, USB 2.0, USB 3.0
Tiedonsiirtonopeus
5 Gbit/s
Suoritin
NEC uPD720201
Yhteensopivuusstandardit
USB 1.1, USB 2.0, USB 3.0
Järjestelmävaatimukset
Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019
Suunniteltu malleihin
P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, CFASTRWU3, HBS304A24A, S251SMU33EP, S3520BU33ER, SDOCK2ERU33, SDOCK2U313R, SDOCK2U33, SDOCK2U33EB, SDOCK2U33RE, SDOCK2U33V, SDOCK4U33, SDOCKU33BV, SDOCKU33EBV, UNI251BMU33, USB3S2ESATA3, USB3S2SAT3CB

Yleistä

Laitteen tyyppi
USB-sovitin
Koko tai muoto
Vaihtokortti
Liitäntä(väylän) tyyppi
PCI Express x1

Verkkoyhteydet

Portit
USB 3.0 x 4
Liitettävyystekniikka
Langallinen
Tiedonsiirtoprotokolla
USB, USB 2.0, SuperSpeed USB 3.0
Tiedonsiirtonopeus
5 Gbit/s
Yhteensopivuusstandardit
USB 1.1, USB 2.0, USB 3.0

Suoritin / Muisti

Suoritin
NEC uPD720201

Laajennus / Kytkeytyvyys

Liitännät
4 x USB 3.0 - 9 pin USB Type A (ulkoinen)
Yhteensopivat korttipaikat
1 x PCI Express x1

Muuta

Sisältyvät lisävarusteet
Matalan profiilin pidike
Yhteensopivuusstandardit
FCC, RoHS

Ohjelmisto / Järjestelmävaatimukset

Mukana tulevat ohjelmistot
Ajurit ja apuohjelmat
Vaadittu käyttöjärjestelmä
Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019

Mitat & Paino

Leveys
1.9 cm
Syvyys
7.5 cm
Korkeus
6.8 cm
Paino
45 g

Ympäristötiedot

Vähimmäiskäyttölämpötila
5 °C
Enimmäiskäyttölämpötila
50 °C
Toimintakosteus
20 - 80%

Edellä mainitut tiedot/tekniset tiedot ovat suuntaa-antavia ja valmistaja voi ilman varoitusta muuttaa niitä. Pidätämme oikeuden painovirheisiin ja ohjeellisiin kuviin. Jotkin tekstit voivat olla automaattisesti luotuja tai konekäännettyjä, mikä voi johtaa harhaanjohtavaan tekstiin.
