Tuotenumero: 2506746

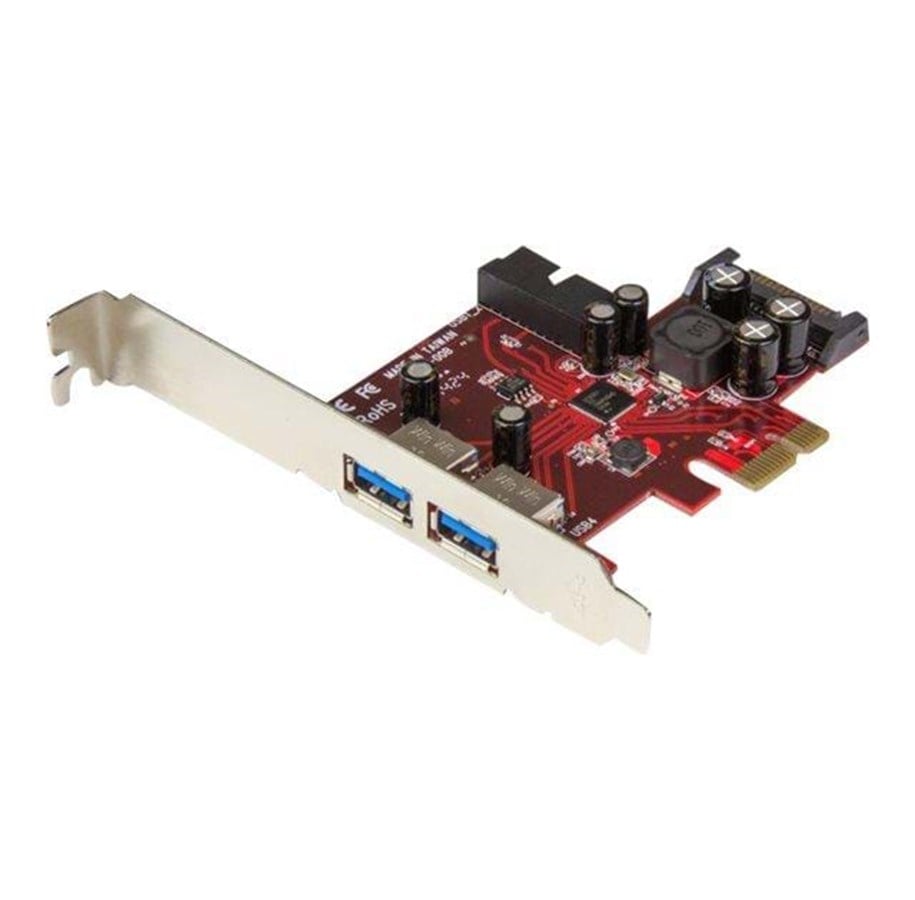

StarTech.com 4-portin PCI Express USB 3.0 -kortti
2 external, 2 internal, SATA power, USB sovitin, PCIe 2.0 matala profiili, USB 3.0 x 4
46,73 €
37,24 € Ilman arvonlisäveroa
Edullisin toimitus (yksityisasiakkaat) 6,99 €
Tukkurilla, 6-9 arkipäivää toimitukseen
Add front or rear panel USB 3.0 ports to your computer case using USB 3.0 motherboard-style headers. This PCI Express USB 3.0 card offers a cost-effective upgrade that lets you add four USB 3.0 ports to your computer through a PCIe slot. It offers two external ports plus two internal USB 3.0 headers to help adapt your desktop or server to support a variety of USB 3.0 devices.
With extra motherboard-style USB 3.0 headers you have the flexibility to add more internal USB 3.0 devices to your PC. When your existing headers are occupied, you can connect front panel hubs or card readers using this versatile alternative to costly motherboard and computer upgrades.
For added convenience, the card integrates two external USB 3.0 ports, so you can plug in more devices such as external hard drives or printers.
The USB 3.0 card is easy to install and requires no additional drivers or software in natively supported Windows 8.1 / 8 operating systems. Plus, it features a dual profile design that fits in standard or low-profile cases, so you can rest assured it will fit in your small form-factor system if needed.
Connecting older peripherals isn't a problem either. So, there's no need to purchase new devices since the adapter card is backward compatible with your USB 2.0 and 1.x technology.
This high-performance SuperSpeed USB 3.0 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a
Note: UASP (USB Attached SCSI Protocol), is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid-state drive.
With extra motherboard-style USB 3.0 headers you have the flexibility to add more internal USB 3.0 devices to your PC. When your existing headers are occupied, you can connect front panel hubs or card readers using this versatile alternative to costly motherboard and computer upgrades.
For added convenience, the card integrates two external USB 3.0 ports, so you can plug in more devices such as external hard drives or printers.
The USB 3.0 card is easy to install and requires no additional drivers or software in natively supported Windows 8.1 / 8 operating systems. Plus, it features a dual profile design that fits in standard or low-profile cases, so you can rest assured it will fit in your small form-factor system if needed.
Connecting older peripherals isn't a problem either. So, there's no need to purchase new devices since the adapter card is backward compatible with your USB 2.0 and 1.x technology.
This high-performance SuperSpeed USB 3.0 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a
Note: UASP (USB Attached SCSI Protocol), is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid-state drive.
Valmistaja
Tuotenumero
2506746
Malli
PEXUSB3S2EI
Ean
0065030860338
Valmistajan kotisivuille
Tuotekuvaus
Startech 4 Port PCI Express USB 3.0 Card - 2 Ext & 2 Int (IDC) - SATA Power - USB-sovitin - PCIe 2.0 - USB 3.0 x 4
Laitteen tyyppi
USB-sovitin
Koko tai muoto
Vaihtokortti - matala profiili
Liitäntä(väylän) tyyppi
PCI Express 2.0 x1
Portit
USB 3.0 x 4
Ulkomitat (PxSxK)
1.8 cm x 12.2 cm x 9.2 cm
Paino
55 g
Tiedonsiirtoprotokolla
USB, USB 2.0, USB 3.0
Tiedonsiirtonopeus
5 Gbit/s
Suoritin
Renesas uPD720201
Yhteensopivuusstandardit
USB 1.1, USB 2.0, USB 3.0
Järjestelmävaatimukset
Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Linux 2.6.31 tai uudempi, Microsoft Windows Server 2012, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits)
Suunniteltu malleihin
P/N: ST1030USBM, ST7300USBME
Yleistä
Laitteen tyyppi
USB-sovitin
Koko tai muoto
Vaihtokortti - matala profiili
Liitäntä(väylän) tyyppi
PCI Express 2.0 x1
Verkkoyhteydet
Portit
USB 3.0 x 4
Liitettävyystekniikka
Langallinen
Tiedonsiirtoprotokolla
USB, USB 2.0, SuperSpeed USB 3.0
Tiedonsiirtonopeus
5 Gbit/s
Ominaisuudet
Kiinteä SATA-virtaliitin, UASP
Yhteensopivuusstandardit
USB 1.1, USB 2.0, USB 3.0
Suoritin / Muisti
Suoritin
Renesas uPD720201
Laajennus / Kytkeytyvyys
Liitännät
2 x USB 3.0 - 9 pin USB Type A (ulkoinen)
2 x USB 3.0 - 20 pin USB 3.0 header (sisäinen)
2 x USB 3.0 - 20 pin USB 3.0 header (sisäinen)
Muuta
Sisältyvät lisävarusteet
Matalan profiilin pidike
Keskimääräinen vikaväli (MTBF)
1,920,042 tunti(a)
Yhteensopivuusstandardit
FCC, RoHS
Ohjelmisto / Järjestelmävaatimukset
Mukana tulevat ohjelmistot
Ajurit ja apuohjelmat
Vaadittu käyttöjärjestelmä
Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Linux 2.6.31 tai uudempi, Microsoft Windows Server 2012, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits)
Mitat & Paino
Leveys
1.8 cm
Syvyys
12.2 cm
Korkeus
9.2 cm
Paino
55 g
Ympäristötiedot
Vähimmäiskäyttölämpötila
5 °C
Enimmäiskäyttölämpötila
50 °C
Toimintakosteus
20 - 80%
Yhteensopivuustiedot
Suunniteltu malleihin
P/N: ST1030USBM, ST7300USBME
